Tree Shear

product--img
| | | | |
-180° 180°

FTS

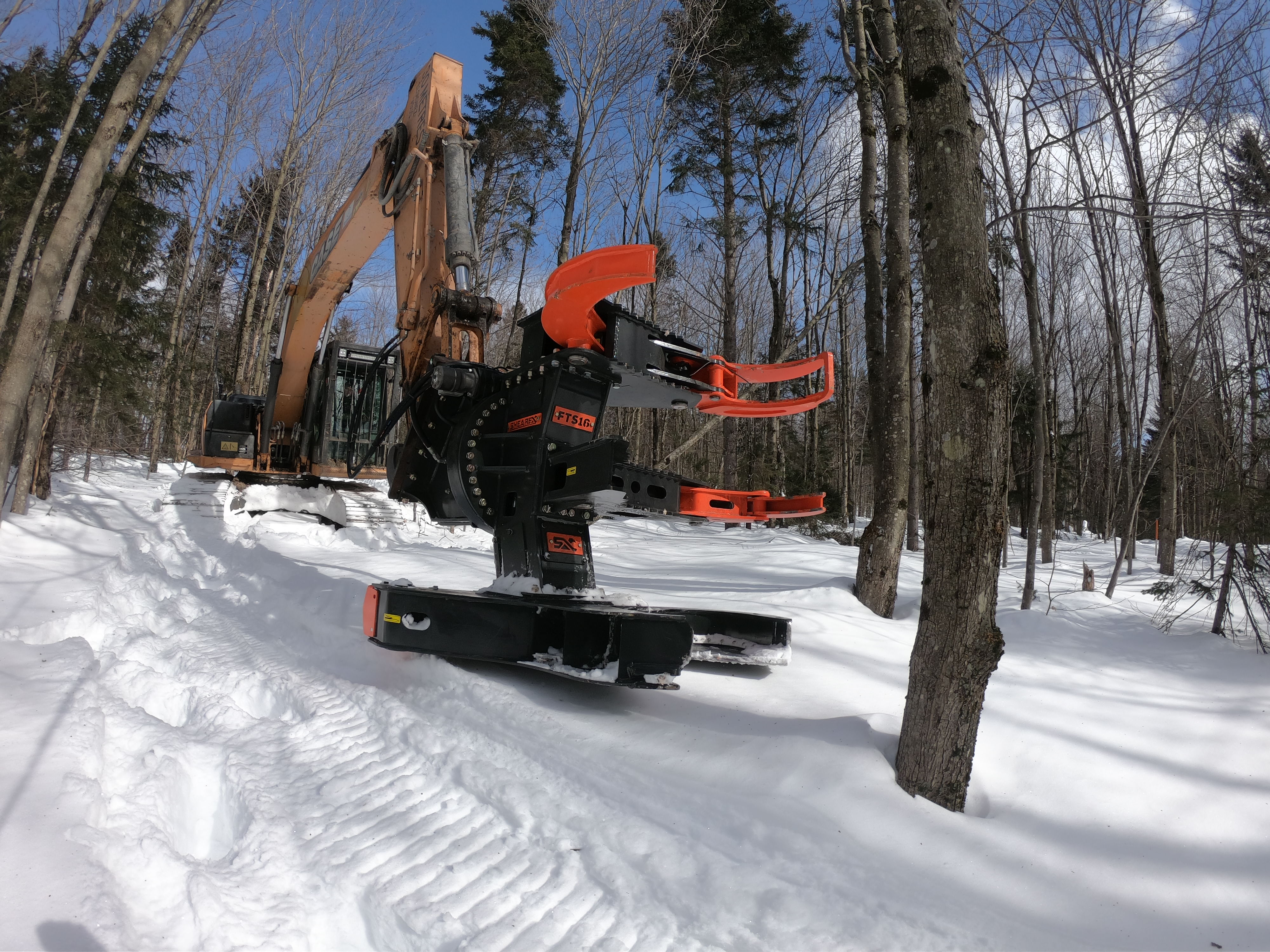

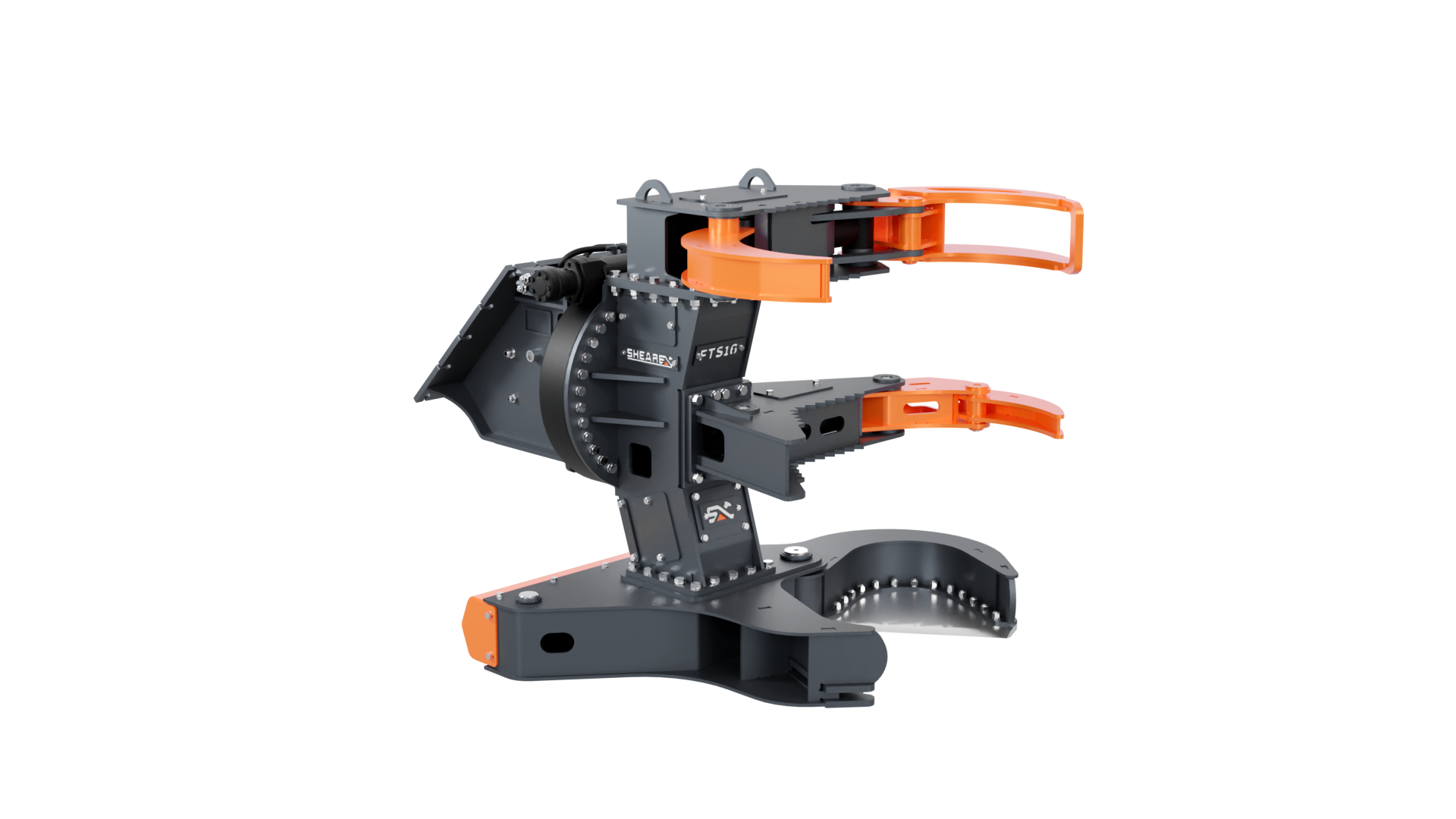

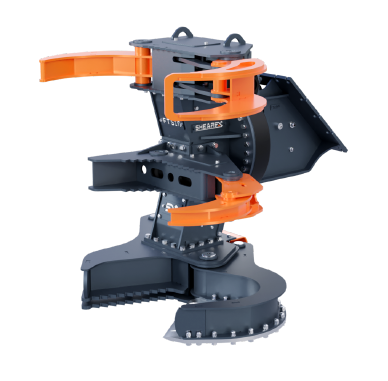

With its multiple tree capacity, it’s powerful replaceable cutting blade and it’s 360 degrees rotation the Shearex tree shear is a natural choice for those who seek to cut down a whole tree in a matter of seconds.

  • Powerful grip & cut;
  • 360 degrees rotation;
  • Protected cylinders;
  • Easy maintenance.

Product specifications

The tree shear from Shearex as been redesigned to offer you an edge. The 360 degrees rotation helps you position the head and drop the tree on it’s side. The accumulator was designed to cut multiple smaller trees in the same motion. The powerful blade is replaceable. The design has been created for those who only need to cut and lay down trees in a matter of seconds.

TECHNICAL SPECIFICATIONS

Model FTS05
Carrier 3t - 7t
Weight lb (kg) 750 (341)
Opening in (mm) 35 (889)
Grappling in (mm) 35 (889)
Height in (mm) 22.99 (584)
Force (t) 11
Pressure PSI (bar) 3191 (220)
Hydraulic Flow gpm (L/min) 13-15 (50-60)
Model FTS07
Carrier 5t - 9t
Weight lb (kg) 950 (431)
Opening in (mm) 35 (889)
Grappling in (mm) 35 (889)
Height in (mm) 23.98 (609)
Force (t) 11
Pressure PSI (bar) 3191 (220)
Hydraulic Flow gpm (L/min) 13-15 (50-60)
Model FTS12
Carrier 8t - 14t
Weight lb (kg) 1300 (590)
Opening in (mm) 17.99 (457)
Grappling in (mm) 33.46 (850)
Height in (mm) 47.01 (1194)
Force (t) 16
Pressure PSI (bar) 3626 (250)
Hydraulic Flow gpm (L/min) 15-21 (60-80)
Model FTS16
Carrier 12t - 18t
Weight lb (kg) 2420 (1100)
Opening in (mm) 25 (635)
Grappling in (mm) 42.99 (1092)
Height in (mm) 55.98 (1422)
Force (t) 37
Pressure PSI (bar) 4351 (300)
Hydraulic Flow gpm (L/min) 21-26 (80-100)
Model FTS20
Carrier 16t - 24t
Weight lb (kg) 3960 (1800)
Opening in (mm) 29.5 (749)
Grappling in (mm) 42.99 (1092)
Height in (mm) 67.99 (1727)
Force (t) 45
Pressure PSI (bar) 4351 (300)
Hydraulic Flow gpm (L/min) 34-40 (130-150)
Model FTS25
Carrier 21t - 35t
Weight lb (kg) 4620 (2100)
Opening in (mm) 33.5 (850)
Grappling in (mm) 58.98 (1498)
Height in (mm) 72.99 (1854)
Force (t) 51
Pressure PSI (bar) 4351 (300)
Hydraulic Flow gpm (L/min) 40-48 (150-180)

COMPATIBILITY

The tree shear is available from 3 to 35 ton excavators.
