Log Splitter Grapple

product--img
| | | | |
-180° 180°

FGS

Maximize your logging operations with this log splitter grapple by handling and splitting your logs at the same time.

  • High capacity;
  • Robust design;
  • Low maintenance.

Product specifications

The log splitter grapple is the ideal tool if you have to move and split logs as part of your forestry operation. It boosts your productivity by giving you two tools in one package

TECHNICAL SPECIFICATIONS

Model FGS005
Carrier 3t - 5t
Weight lb (kg) 450 (204)
Opening in (mm) 24 (610)
Width in (mm) 6 (152)
Depth in (mm) 12 (305)
Pressure PSI (bar) 4640 (320)
Force (t) 10
Model FGS007
Carrier 6t - 8t
Weight lb (kg) 670 (304)
Opening in (mm) 32 (812)
Width in (mm) 8 (203)
Depth in (mm) 18 (458)
Pressure PSI (bar) 4640 (320)
Force (t) 15
Model FGS012
Carrier 9t - 13t
Weight lb (kg) 1154 (524)
Opening in (mm) 41.25 (1048)
Width in (mm) 10 (254)
Depth in (mm) 20 (508)
Pressure PSI (bar) 4640 (320)
Force (t) 25

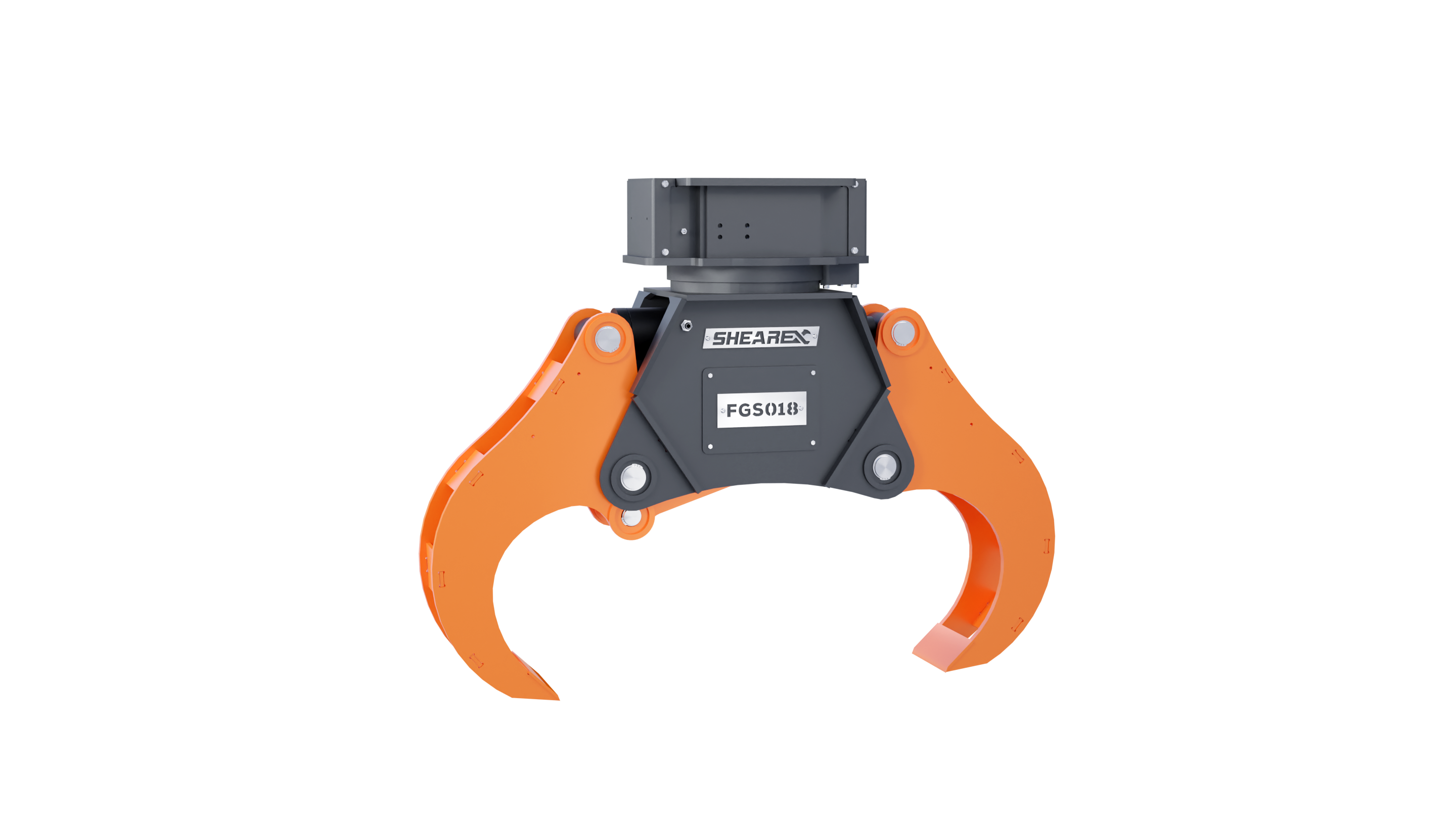

Model FGS018
Carrier 14t - 21t
Weight lb (kg) 2122 (964)
Opening in (mm) 54.5 (1385)
Width in (mm) 12 (305)
Depth in (mm) 28 (711)
Pressure PSI (bar) 5000 (350)
Force (t) 35
Model FGS025
Carrier 22t - 30t
Weight lb (kg) 4410 (2000)
Opening in (mm) 71 (1803)
Width in (mm) 16 (406)
Depth in (mm) 35 (889)
Pressure PSI (bar) 5000 (350)
Force (t) 50

COMPATIBILITY

The log splitter grapple is available from 3 to 30 ton excavators.
