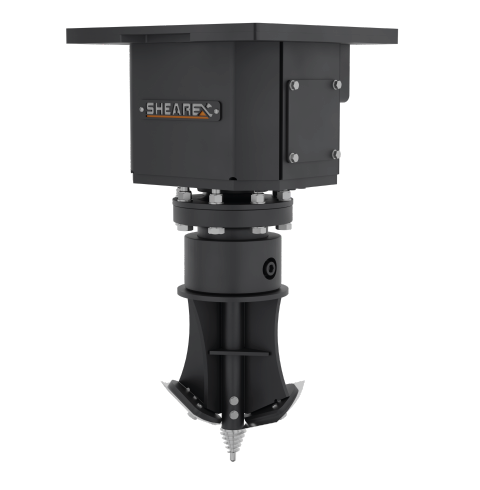

Stump Grinder

-01HER4TGD86A1XVZ26M6WH8Z4M.png)
SG Series
The Shearex stump grinder has been designed for maximum efficiency, unrivalled speed and minimal impact on the environment. With Shearex, no time is wasted on clean-up: our stump grinder quickly pulverizes stumps and buried residues, leaving your work sites clean and ready for new planting or maintenance vehicle traffic.
- Blade system interchangeable in less than 5 minutes.
- Adapt your equipment to different applications and soft or hard wood.
- Equipped with a high-performance, low-maintenance motor guaranteeing constant, reliable power every time.
- Designed to minimize downtime and optimize your time in the field.
- Hardox® 500 blades ensure you meet the demands of the toughest jobs, while respecting the environment.
- Rapid availability of wear and replacement parts.
Product Specification
Models |
|
SG15 |
SG24 |
SG34 |
---|---|---|---|---|
Carrier Size | Tons | 3 to 6 | 6 to 14 | 12 to 30 |
Cut Diameter | IN (MM) | 15 (380) | 24 (600) | 34 (860) |
Maximum Pressure | PSI (BAR) | 5,500 (379) | 5,500 (379) | 5,500 (379) |
Maximum Hydraulic Flow | GPM (L/M) | 10-25 (38-100) | 14-35 (65-145) | 22-50 (100-225) |
Minimum Speed | RPM | 50 | 35 | 35 |
Maximum Speed | RPM | 110 | 60 | 50 |
Maximum Torque* | FT-LBS (Nm) | 10,500 (14,250) | 13,000 (17,000) | 32,000 (45,000) |
Cone Splitter (Optional) | IN | 14 | 16 | 16 |
In addition to our standard blades, we offer an optional splitting cone. Ideal for processing logs with ease.
