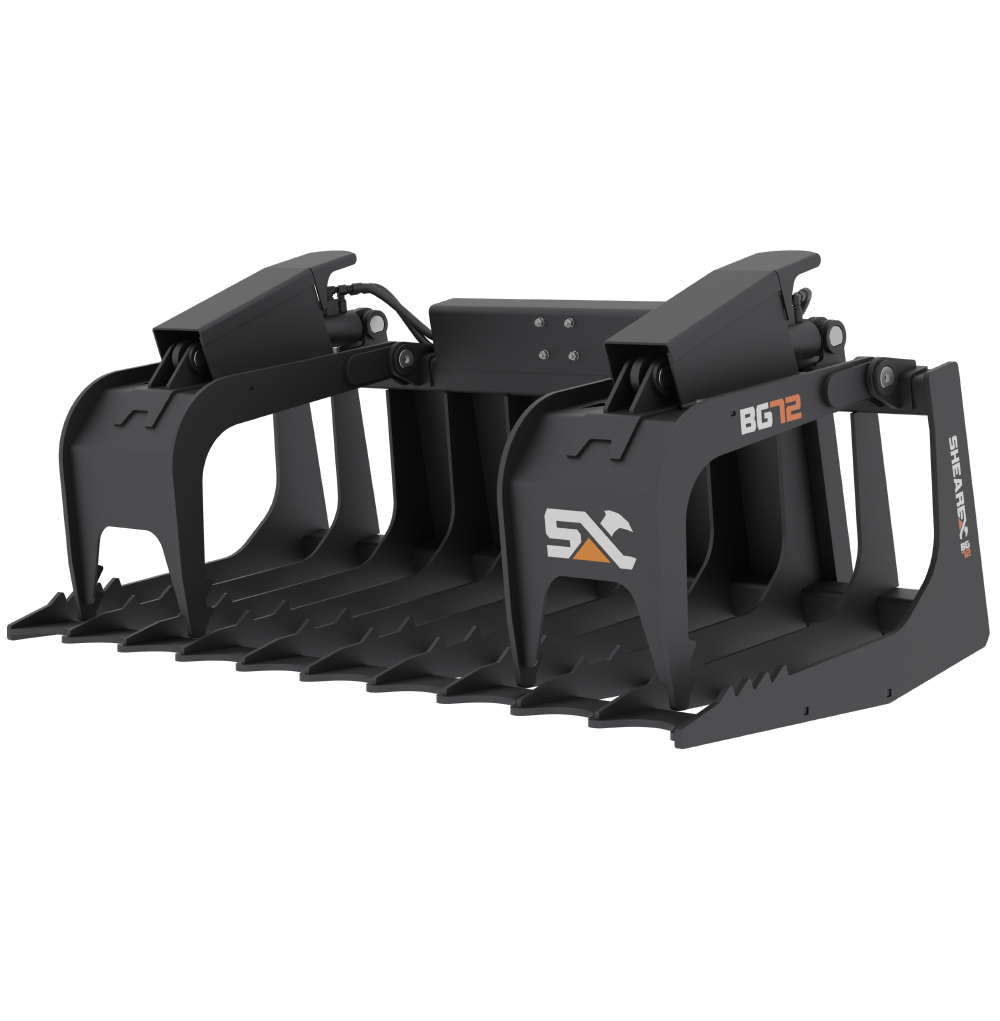

Brush Grapple
-01HER4TGD86A1XVZ26M6WH8Z4M.png)
BG Series
Introducing the Brush Grapple by Shearex, a powerful and versatile tool designed to excel in forestry, recycling, scrap yards, construction, agriculture, and storm clean up application.
The Brush Grapple offers a working width from 60” to 83” and features an open-end design, allowing you to handle a wide range of materials, from logs and brush to roots and bulky debris. With twin hydraulic cylinder grapple arms protected by guards and operating under 3000 PSI of pressure, this attachment provides exceptional heavy-duty capacity for any job.
Built for durability, it comes with additional features including cylinder protector and hydraulic hose guard, and a universal mount for easy compatibility with most skid steers.
Transform your skid steer into a multi-purpose asset with the Brush Grapple from Shearex: a dependable, powerful solution ready to tackle even the toughest jobs.
-
Working width from 60” to 83”
-
Universal Skid Steer attachment
-
Cylinder protector
-
Double grapple, 3000psi cylinder
-
Hydraulic hose guard
Product specifications
TECHNICAL SPECIFICATIONS
|
Model |
Overall Width (IN) |
Grapple Open (IN) |
Grapple Closed (IN) |
Overall Depth (IN) |
Weight (LBS) |
Number of tines |
Plate (IN) | Line Spacing (IN) |
|---|---|---|---|---|---|---|---|---|
| BG-60 | 60 | 38 | 16.75 | 39 | 750 | 9 | 0.38 | 7 |
| BG-72 | 72 | 38 | 16.75 | 39 | 825 | 11 | 0.38 | 7 |
| BG-83HD | 83 | 37 | 16 | 36 | 1,150 | 16 | 0.5 | 5 |
COMPATIBILITY
The brush grapple comes with a universal mount for easy compatibility with most skid steers.
